Comtec GmbH
Booth number: D050d
comtec1.de
About us
COMTEC GmbH has been producing and selling accessories for cables, telecommunications and railway technology since it was founded in 1975. We market our products directly or with trading partners worldwide.
With a focus on long-term business relationships, our most important key to success is the quality of our products and the satisfaction of our customers.
The in-house production of our moulds enables our production to react very quickly and independently to new market factors.
Special requests or the production of specific, customised components are part of our daily business. Would you like to realise a new project with us or outsource existing in-house production? We guarantee short distances, cost-effectiveness and expert advice, from your requirements letter to initial sam pling and subsequent series production!
In accordance with our sustainability strategy, COMTEC GmbH is already a climate-neutral company with a focus on sustainability.
Deutsche Bahn AG and numerous companies operating internationally in the railway sector have placed their trust in us for decades. As a classified "Q1 supplier" of Deutsche Bahn AG, we fulfil the highest quality requirements for suppliers with our ‘cable accessories for control and safety technology’. A complaint rate of 0% for 2 years now speaks for itself. Deutsche Bahn AG and numerous companies operating internationally in the railway sector have placed their trust in us for decades.
Our products stand for quality, durability and reliable availability.
We look forward to meeting your expectations!
Address
Zeppelinstr. 9
28816 Stuhr
Germany
E-mail: info@comtec1.de
Phone: +49 421 565430
Internet: comtec1.de
Contact person:
Juergen Striedieck
E-mail: info@comtec1.de
Signal cable distributor "CSKV-01"
This miniature cable distributor is suitable for the installation of e.g. switch connections, track magnets (also with tongue test contact), balises and offers sufficient space for up to 16 double level terminals.
Further advantages of this product are the easy installation, the low weight and the extensive range of accessories, such as cable glands, stand and much more!
The distributor has the series release of DB Netz AG (TM: 4-2016-10379 I.NPS3) and may be used without restrictions.
On request, we will be happy to provide you with an offer tailored exactly to your requirements.

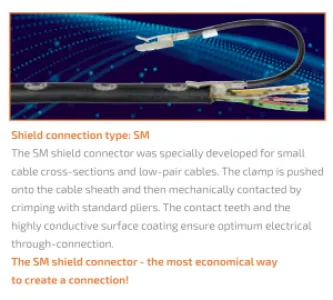

Shield connectors
As a manufacturer of shield connectors, our expertise is to create innovative and solder-free connections between cable shields while ensuring optimum ease of installation.
COMTEC clamp types: SM, SC, SW, V-Clip (for more details use the link to our website)
Features and options:
Cable: UL certified on request
Cable cross-section: 1mm²; 1.5mm²; 2.5mm²; 4 mm²; other cross-sections on request
Cable sheath color: black (standard), green/yellow, white, red; other colors on request
Number of terminals: assembled on one or both sides
Total length: as specified by customer
DIN standard: complies with DIN47626
Customs tariff number: 85444210
Shield connection with cable sheath clamp
This cable sheath clamp is used wherever other earthing systems cannot be used due to insufficient cross-section.
Sliding joints KM 0-3
Economical, safe, environmentally-and user friendly
High-quality, impact-resistant plastic housing
Dielectric strength of up to 15kV
Suitable for cable diameter 5 -19mm
Suitable for cables with 2-70 pairs
Resistant to ageing
Resistant to corrosion and moisture
Installation and opening of the housing without any tools
Environmentally friendly thanks to solvent free filling compound
Resistant to alkaline earth elements
High electrical insulating values
High mechanical strength
Quick, safe and easy assembly
Ready for immediate operation
Fibre-reinforced shrink sleeves
We deliver configuration as complete railway set:
Economical, safe, environmentally- and user friendly
Protective sleeve VASS 1-5
Signalling cable sleeve SVSM 1-5
LK 0-4 (solderless earthing kit)
WSP 1-4 (water stop plug kit)
Shield connection cables
Crimp connectors
Your advantage:
No stock-keeping of individual components
All required components in a set at the right time and in the right place
Short procurement channels
No problems with customer acceptance, as all components in the set are approved and have been tried and tested for years
