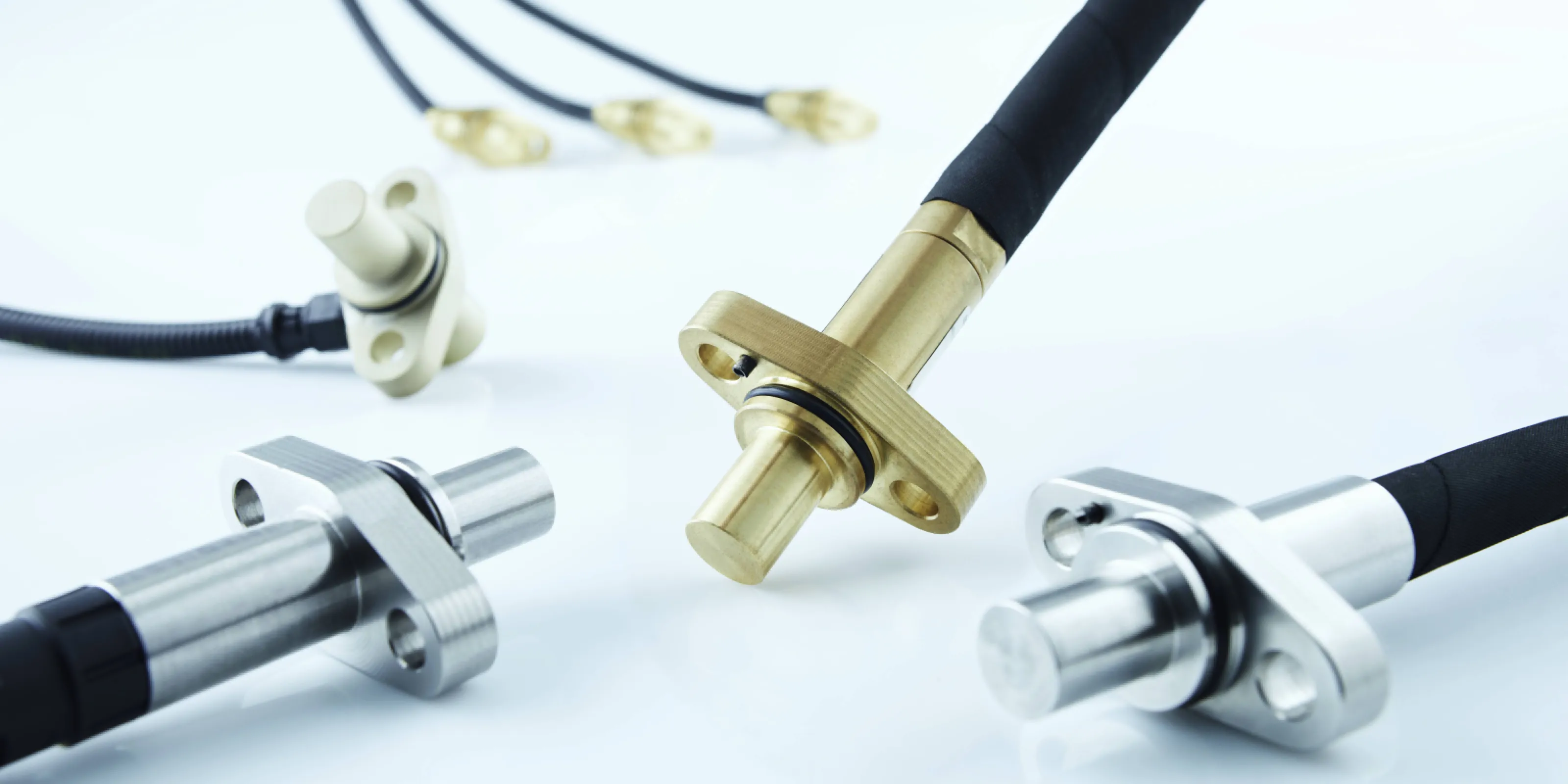

EPHYMESS speed sensors are used to reliably detect the speed and direction of rotation of e.g. locomotives, multiple units and high-speed trains.

Alongside temperature sensors, speed sensors are another component in EPHYMESS GmbH’s modular sensor concept for rail vehicles. They can be installed in high-speed trains, metros and trams all over the world. Magnetic incremental encoders (Hall effect) are used in sensor wheels made from steel or iron (ferromagnetic). In (electrically conductive) aluminium cog wheels, speed sensors based on the eddy current principle make reliable measurement possible.

Speed sensors measure rotational movements on involute or rectangular geared sensor wheels in 1 and 2 channel versions. They are available for cog wheel modules from 1.0 to 3.0. They have a max. switching frequency of 20,000 Hz, or 25,000 Hz in special implementations. The speed sensors are also suitable for zero speed.

Since the magnets inside the speed sensor are resistant to high temperatures, the magnetisation remains unchanged across the entire temperature range of -50°C to 125°C. They are available as versions with a power supply (VL) or a current loop design (CL). The speed sensors offer excellent long-term stability.

The sensors meet the requirements of protection classes IPx6 and IPx8, and conform with the following standards: DIN EN 61373 Cat. 3, UIC 564-2, DIN EN 45545-2, DIN EN 50305, DIN EN 50121-3-2, DIN EN 60332-1-2, DIN EN 61034-2, DIN EN 60068-2-27, DIN EN 60947-5-2 and NF F16-101.
