Robust and vibration-proof oil level gauges especially produced for transport technology. They are optimised for use in underfloor areas of rail vehicles and can even withstand stone chipping.

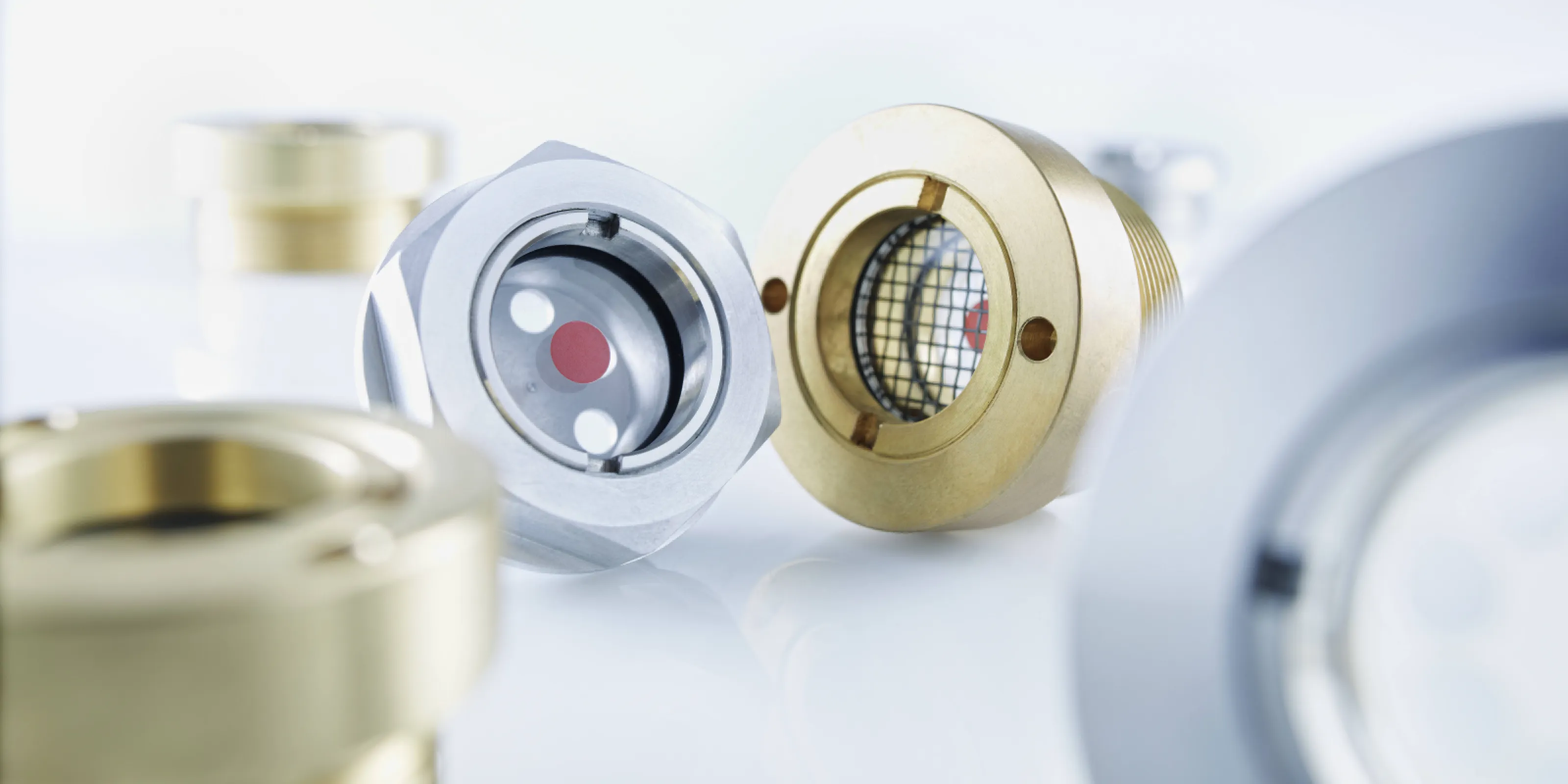

Oil level gauges are used to observe the fill level and to detect operating situations. They enable quick, easy visual control and can also be used for other media, alongside systems filled with oil or with an oil flow. The optional reflector makes the level easy to read even in poor visibility. As well as the basic version with a viewing window, EPHYMESS also produces level gauges with a patented two-chamber system with impact protection. The oil level gauges guarantee absolute tightness and high resistance to every kind of oil and other media. Brass, stainless steel and aluminium housing is available, depending on the application.

The basic version has a sight glass that allows the oil level to be seen quickly and easily during servicing and maintenance. This is absolutely sufficient in protected areas. For additional protection, special Makrolon glass can be used. This combines the benefits of the single window with the robust properties of the two-chamber system. EPHYMESS’ patented two-chamber system for oil level gauges also has a stainless steel grid as impact protection.  If the out glass breaks due to impact, the stainless steel grid catches the projectile, so that the inner special glass remains intact and no gear oil can escape. The defective glass can be replaced quickly during a routine inspection, with no need to drain the oil. The special glass can withstand projectiles with a mass of 30 g and a speed of up to 50 m/s. The operating temperature is between -30°C … +120°C. A reflector can be installed and markings applied on request. The two-chamber oil level gauges are also used in particularly tough industrial environments (e.g. mining). Installation tools are available as an option.
